Mini Pleate HEPA Filter
Mini Pleate HEPA Filter

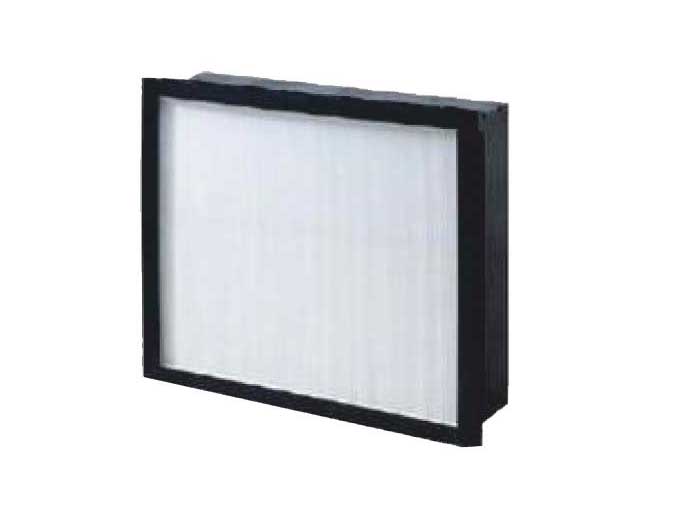

Micron Air Filter & Equipments Pvt. Ltd. Mini Pleat HEPA Filters are used in situations requiring high or very high level of purity. They are primarily designed as intake filters for low turbulence displacement flow clean room ceilings and clean workbenches.
Features
- Low initial pressure drop
- High Dust holding Capacity
- High cost / performance ratio
- Wide range of standard sizes
- Individually leak tested
- Factory extruded, locable type, 69mm Aluminium casing
- Compact in size and light in weight
Applications
- Laminar flow for clean benches and other
- Clean room applications
- Clean room equipments
- Hospitals
| Type | Deep pleated flange or box type |
|---|---|
| Frame | Minipleat HEPA box type |
| Separators | Aluminum |
| Filter Media | Micro fiber glass paper Imported |
| Sealant | Polyurethane |
| Gasket | Neoprene |
| BS EN 779 CLASS | H10, H11, H12, H13, H14 upto EU17 |
| Filter Efficiency | H10 - 95 % @ 0.3 micron H12 - 99.97% @ 0.3 micron |
| H11 - 99.9 % @ 0.3 micron H13 - 99.99% @ 0.3 micron | |
| H14 - 99.999% @ 0.3 micron | |
| Eurovent Class | EU 10, EU 11, EU 12, EU 13, EU 14 up to EU17 |
| Class | Micron | Size | Capacity | |||
|---|---|---|---|---|---|---|
| Width | Height | Depth | CFM | CMH | ||
| H14 | 99.999 | 305 | 305 | 69 | 88 | 150 |
| H14 | 99.999 | 305 | 610 | 69 | 176 | 300 |
| H14 | 99.999 | 610 | 610 | 69 | 353 | 600 |
| H14 | 99.999 | 610 | 915 | 69 | 530 | 900 |
| H14 | 99.999 | 610 | 1220 | 69 | 705 | 1200 |
| H14 | 99.999 | 610 | 1524 | 69 | 882 | 1500 |
| H14 | 99.999 | 610 | 1830 | 69 | 1058 | 1800 |
| H14 | 99.999 | 915 | 915 | 69 | 794 | 1450 |
| H14 | 99.999 | 610 | 1524 | 69 | 882 | 1500 |
